Battery Monitoring Systems (BMS)

Designed with an advanced measurement algorithm and no need for high-current discharge to achieve non-destructive measurement.
The system is equipped with a balancing function, which can ensure the battery string keeps the voltage balanced under floating status.
This allows each battery to maintain its best active state and improves the bat

Designed with an advanced measurement algorithm and no need for high-current discharge to achieve non-destructive measurement.
The system is equipped with a balancing function, which can ensure the battery string keeps the voltage balanced under floating status.
This allows each battery to maintain its best active state and improves the battery backup time and operating life.
Through PBMS2000, users can upgrade the program for cell sensors locally.

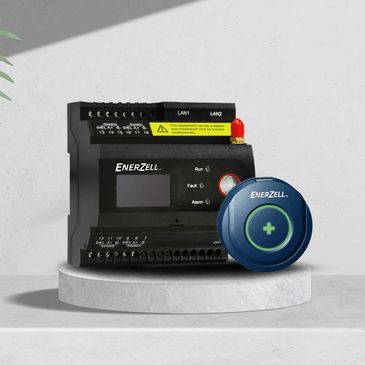

The PBAT-Gate is an intelligent battery monitoring system designed for small-scale data centers and UPS systems.
It provides 24/7 real-time monitoring for up to 4 battery strings totaling 480 batteries.
Measures key parameters like cell voltage, temperature, string current, and impedance.
Cell Sensor designed to support 2V, 6V, and 12V lead-

The PBAT-Gate is an intelligent battery monitoring system designed for small-scale data centers and UPS systems.
It provides 24/7 real-time monitoring for up to 4 battery strings totaling 480 batteries.
Measures key parameters like cell voltage, temperature, string current, and impedance.

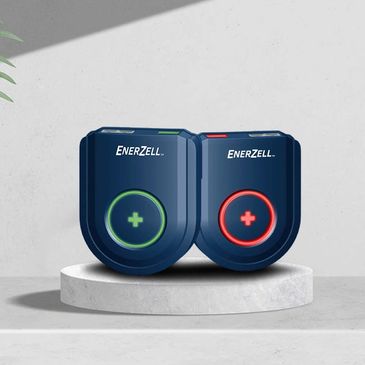

Cell Sensor designed to support 2V, 6V, and 12V lead-acid batteries, that offers comprehensive online monitoring capabilities.
It enables real-time tracking of each battery cell's voltage, internal resistance, and negative terminal temperature.

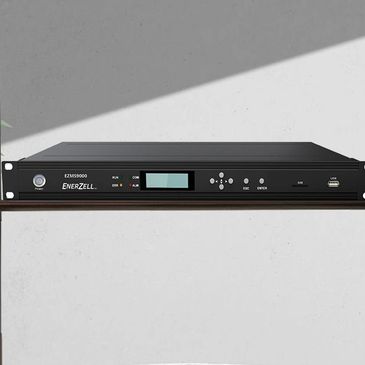

PBMS9000 solution integrated into the feature of the embedded web page, historical data storage, multiple data upload, USB data backup, dual-source etc.
It's suitable for UPS, larger-scale data centers and multi-site applications.

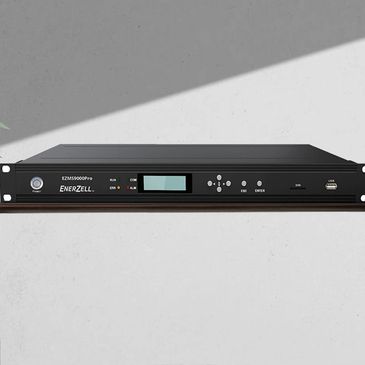

PBMS9000Pro Solution can be used to online monitoring of various battery banks, comprehensively measure and determine battery bank and battery cell performance, and display and alarm failed batteries to realize the automation of battery detection and failure anticipation detection.
